< Delphi FG0146 Fuel Pump Module Assembly - Actual OE Part
Delphi FG0146 Fuel Pump Module Assembly - Actual OE Part For A 1997 Chevrolet Venture
Fits Vehicle: 1997
Chevrolet
Venture
Required Per Vehicle: 1
Retail Price: $563.99
Sale Price:
$390.42
Shipping: Free!
Features
- Internal springs increased durability and enhanced stability prevents tube chafing
- Lower amperage draws less load on vehicle's electrical system
- Fuel level goldfilled sensors provide improved resistance to sulfur corrosion and heat resistance
- Empty float height and float retention is to exact OE specifications guaranteeing correct gas gauge reading
- Fill Line Size: Nthis is a test
- Fill Line Style: Nthis is a test
- Fill Vapor Valve: Nothis is a test
- Flow Rate: 18 g/sthis is a test
- Fuel Pressure Reg: Nothis is a test
- Fuel Type: Gasolinethis is a test
- Gasket Included: 10259269this is a test

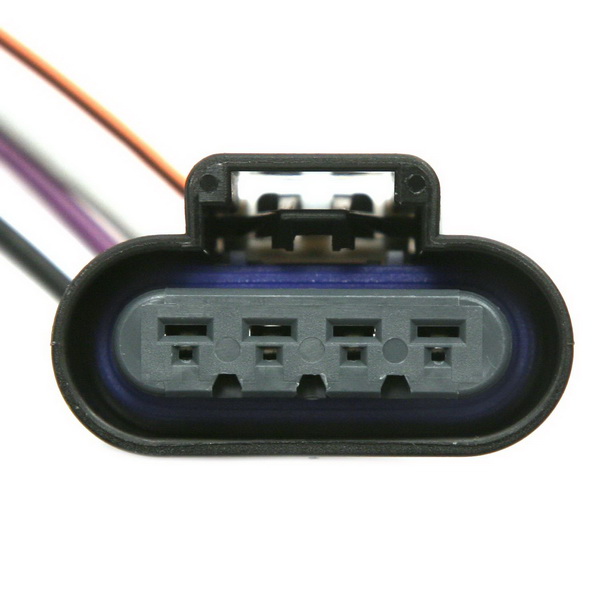

- Harness/Jumper: 1 X 4 Splice Harnessthis is a test
- Installed Height: 220.0 mmthis is a test
- Mount Type: In-Tankthis is a test
- OE Type/Exact Fit: OEthis is a test
- Package Contents: Seal, Float Arm Asm., Fl. Arm Instr. Sht., Product Bulletin, Harnessthis is a test
- Return Line Size: 7.9mmthis is a test
- Return Line Style: Male QCthis is a test
- Shut Off Pressure: 450 - 900 kPathis is a test
- Strainer Location: Internal & Externalthis is a test
- Supply Line Size: 9.5mmthis is a test
- Supply Line Style: Male QCthis is a test
- System Pressure: 360 kPathis is a test
- Type/Series: Fuel Delivery Modulethis is a test
- Vapor Press Sensor: Nothis is a test
- Vapor Vent Line: Nothis is a test
- Voltage: 13 vDCthis is a test
- Warranty: 12 mos/12,000 milesthis is a test
Description
Internal springs increased durability and enhanced stability prevents tube chafing. Lower amperage draws less load on vehicle's electrical system. Fuel level goldfilled sensors provide improved resistance to sulfur corrosion and heat resistance. Empty float height and float retention is to exact OE specifications guaranteeing correct gas gauge reading
Manufacturer Information
Item Number: FG0146
Approximate Item Package Dimensions: 15.69" x 7.69" x 5.13"
Approximate Item Package Weight: 3.22 lbs
