< Delphi FG0387 Fuel Pump Module Assembly - OE Equivalent

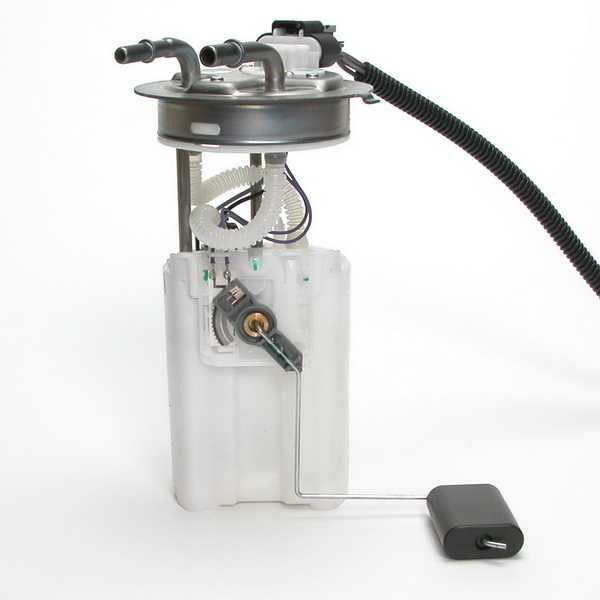

Delphi FG0387 Fuel Pump Module Assembly - OE Equivalent For A 2004 Chevrolet Trailblazer
Fits Vehicle: 2004
Chevrolet
Trailblazer
Engine: 4.2L/256ci L6
Required Per Vehicle: 1
Wheelbase: 113.0-inch Wheelbase
Retail Price: $500.99
Sale Price:
$346.52
Shipping: Free!
Features
- Internal springs increased durability and enhanced stability prevents tube chafing
- Lower amperage draws less load on vehicle's electrical system
- Fuel level goldfilled sensors provide improved resistance to sulfur corrosion and heat resistance
- Empty float height and float retention is to exact OE specifications guaranteeing correct gas gauge reading
- Fill Line Size: Nthis is a test
- Fill Line Style: Nthis is a test
- Fill Vapor Valve: Nothis is a test
- Flow Rate: 16.6 g/sthis is a test
- Fuel Pressure Reg: Nothis is a test
- Fuel Type: Gasolinethis is a test
- Gasket Included: 25379854this is a test

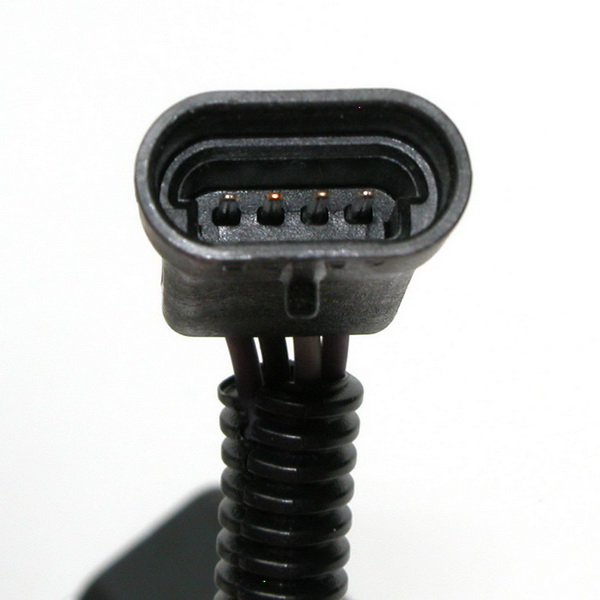

- Harness/Jumper: 1x4 to 1x4 Jumperthis is a test
- Installed Height: 186.0 mmthis is a test
- Mount Type: In-Tankthis is a test
- OE Type/Exact Fit: OEthis is a test
- Package Contents: Seal, Product Bulletin, Harnessthis is a test
- Return Line Size: 7.9mmthis is a test
- Return Line Style: Male QCthis is a test
- Shut Off Pressure: 450 - 750 kPathis is a test
- Strainer Location: Internalthis is a test
- Supply Line Size: 9.5mmthis is a test
- Supply Line Style: Male QCthis is a test
- System Pressure: 410 kPathis is a test
- Type/Series: Fuel Delivery Modulethis is a test
- Vapor Press Sensor: Nothis is a test
- Vapor Vent Line: Nothis is a test
- Voltage: 12 vDCthis is a test
- Warranty: 12 mos/12,000 milesthis is a test
Description
Internal springs increased durability and enhanced stability prevents tube chafing. Lower amperage draws less load on vehicle's electrical system. Fuel level goldfilled sensors provide improved resistance to sulfur corrosion and heat resistance. Empty float height and float retention is to exact OE specifications guaranteeing correct gas gauge reading
Manufacturer Information
Item Number: FG0387
Approximate Item Package Dimensions: 12.25" x 8.25" x 8.25"
Approximate Item Package Weight: 3.72 lbs
