< Delphi FG0342 Fuel Pump Module Assembly - Actual OE Part

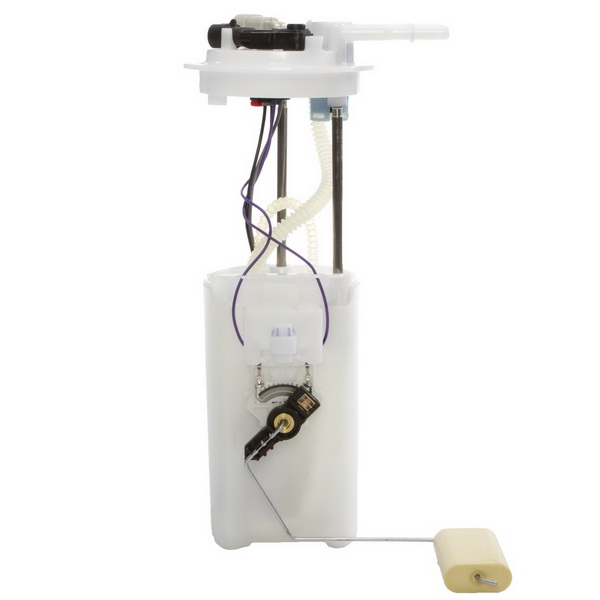

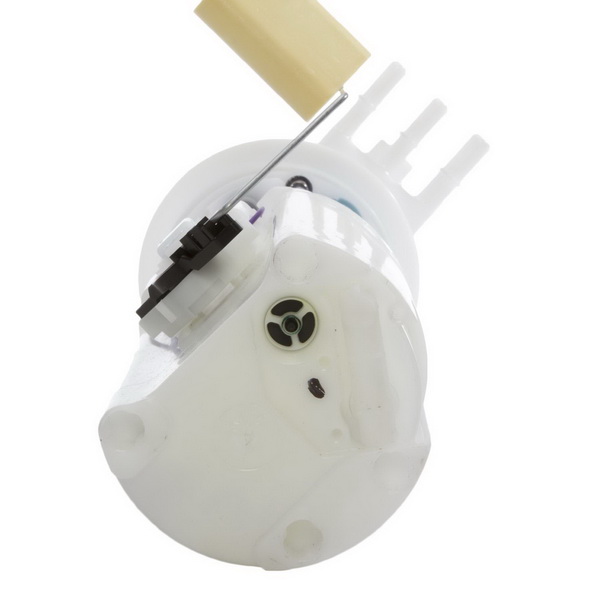

Delphi FG0342 Fuel Pump Module Assembly - Actual OE Part For A 2004 Chevrolet Monte Carlo
Fits Vehicle: 2004
Chevrolet
Monte Carlo
Engine: 3.4L/207ci V6
Sub Model: LS
Engine Details: Engine VIN E
Engine Type: Naturally Aspirated
Required Per Vehicle: 1
Retail Price: $489.99
Sale Price:
$339.07
Shipping: Free!
Features
- Internal springs increased durability and enhanced stability prevents tube chafing
- Lower amperage draws less load on vehicle's electrical system
- Fuel level goldfilled sensors provide improved resistance to sulfur corrosion and heat resistance
- Empty float height and float retention is to exact OE specifications guaranteeing correct gas gauge reading
- Fill Line Size: Nthis is a test
- Fill Line Style: Nthis is a test
- Fill Vapor Valve: Nothis is a test
- Flow Rate: 18 g/sthis is a test
- Fuel Pressure Reg: Nothis is a test
- Fuel Type: Gasolinethis is a test
- Gasket Included: 25372146this is a test

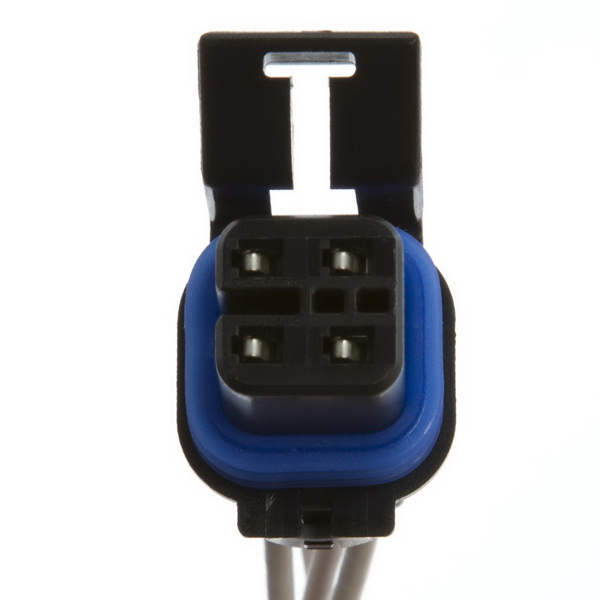

- Harness/Jumper: 2 X 2 Splice Harnessthis is a test
- Mount Type: In-Tankthis is a test
- OE Type/Exact Fit: OEthis is a test
- Package Contents: Seal, Float Arm Asm., Fl. Arm Instr. Sht., Product Bulletin, Harnessthis is a test
- Return Line Size: 7.9mmthis is a test
- Return Line Style: Male QCthis is a test
- Shut Off Pressure: 450 - 900 kPathis is a test
- Strainer Location: Internal & Externalthis is a test
- Supply Line Size: 9.5mmthis is a test
- Supply Line Style: Male QCthis is a test
- System Pressure: 360 kPathis is a test
- Type/Series: Fuel Delivery Modulethis is a test
- Vapor Press Sensor: Yesthis is a test
- Vapor Vent Line: Yesthis is a test
- Voltage: 13 vDCthis is a test
- Warranty: 12 mos/12,000 milesthis is a test
Description
Internal springs increased durability and enhanced stability prevents tube chafing. Lower amperage draws less load on vehicle's electrical system. Fuel level goldfilled sensors provide improved resistance to sulfur corrosion and heat resistance. Empty float height and float retention is to exact OE specifications guaranteeing correct gas gauge reading
Manufacturer Information
Item Number: FG0342
Approximate Item Package Dimensions: 15.69" x 7.69" x 5.13"
Approximate Item Package Weight: 3.24 lbs
