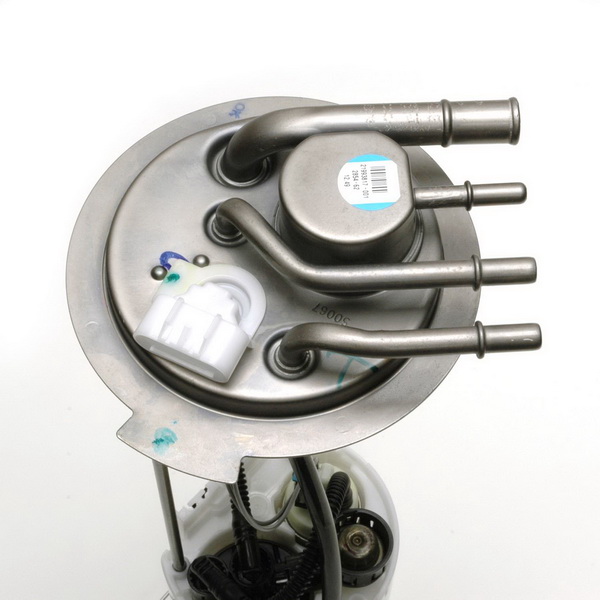

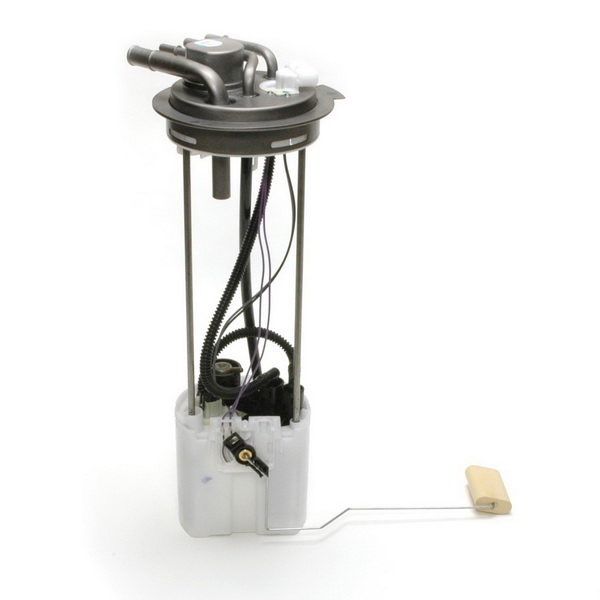

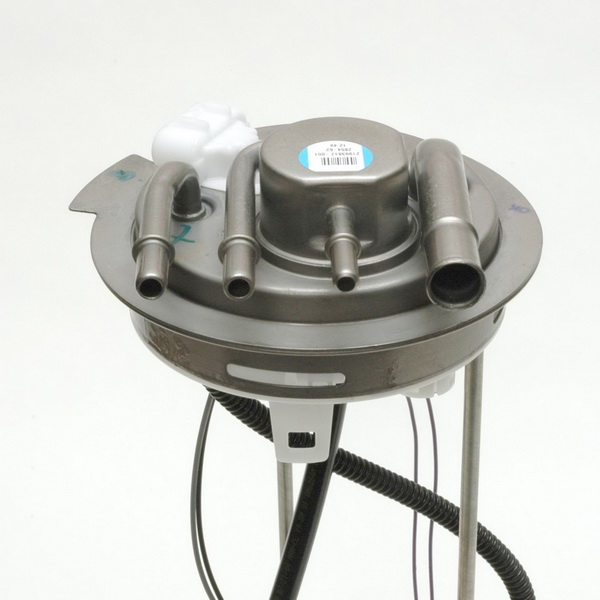

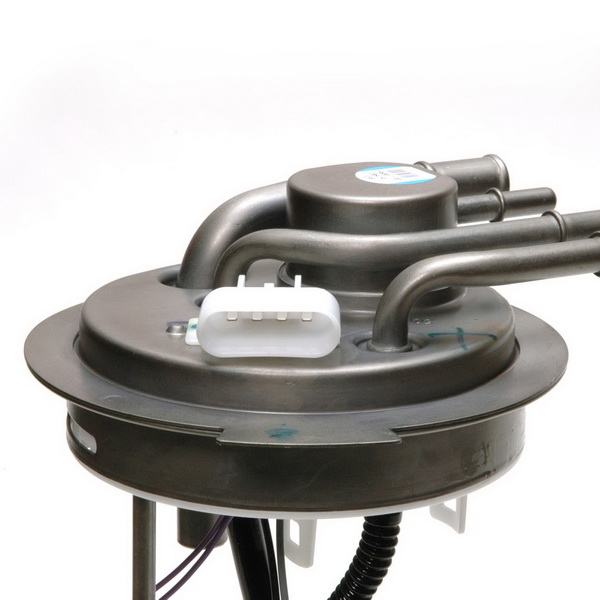

< Delphi FG0354 Fuel Pump Module Assembly - OE Equivalent
Delphi FG0354 Fuel Pump Module Assembly - OE Equivalent For A 2005 Chevrolet Silverado 3500
Fits Vehicle: 2005
Chevrolet
Silverado 3500
Note:
Primary Fuel Tank
Note:
Without Evap Emissions
Cab / Body: Cab & Chassis
Engine Type: GAS
Required Per Vehicle: 1
Retail Price: $525.99
Sale Price:
$363.64
Shipping: Free!
Features
- Internal springs increased durability and enhanced stability prevents tube chafing
- Lower amperage draws less load on vehicle's electrical system
- Fuel level goldfilled sensors provide improved resistance to sulfur corrosion and heat resistance
- Empty float height and float retention is to exact OE specifications guaranteeing correct gas gauge reading
- Fill Line Size: 15.8this is a test
- Fill Line Style: Male QCthis is a test
- Fill Vapor Valve: Nothis is a test
- Flow Rate: 29.6 g/sthis is a test
- Fuel Pressure Reg: Yesthis is a test
- Fuel Type: Gasolinethis is a test
- Gasket Included: 25371188this is a test
- Harness/Jumper: Nothis is a test
- Installed Height: 381.5 mmthis is a test
- Mount Type: In-Tankthis is a test
- OE Type/Exact Fit: OEthis is a test
- Package Contents: Seal, Product Bulletinthis is a test
- Return Line Size: 9.5mmthis is a test
- Return Line Style: Male QCthis is a test
- Shut Off Pressure: 500 - 900 kPathis is a test
- Strainer Location: Internalthis is a test
- Supply Line Size: 9.5mmthis is a test
- Supply Line Style: Male QCthis is a test
- System Pressure: 373 kPathis is a test
- Type/Series: Fuel Delivery Modulethis is a test
- Vapor Press Sensor: Nothis is a test
- Vapor Vent Line: Yesthis is a test
- Voltage: 12.5 vDCthis is a test
- Warranty: 12 mos/12,000 milesthis is a test
Description
Internal springs increased durability and enhanced stability prevents tube chafing. Lower amperage draws less load on vehicle's electrical system. Fuel level goldfilled sensors provide improved resistance to sulfur corrosion and heat resistance. Empty float height and float retention is to exact OE specifications guaranteeing correct gas gauge reading
Manufacturer Information
Item Number: FG0354
Approximate Item Package Dimensions: 21.63" x 8.25" x 8.25"
Approximate Item Package Weight: 5.9 lbs
