Internal springs increased durability and enhanced stability prevents tube chafing
Lower amperage draws less load on vehicle's electrical system
Fuel level goldfilled sensors provide improved resistance to sulfur corrosion and heat resistance
Empty float height and float retention is to exact OE specifications guaranteeing correct gas gauge reading
Fill Line Size: Nthis is a test
Fill Line Style: Nthis is a test
Fill Vapor Valve: Nothis is a test
Flow Rate: 25 g/sthis is a test
Fuel Pressure Reg: Nothis is a test
Fuel Type: Gasolinethis is a test
Gasket Included: 25372146this is a test

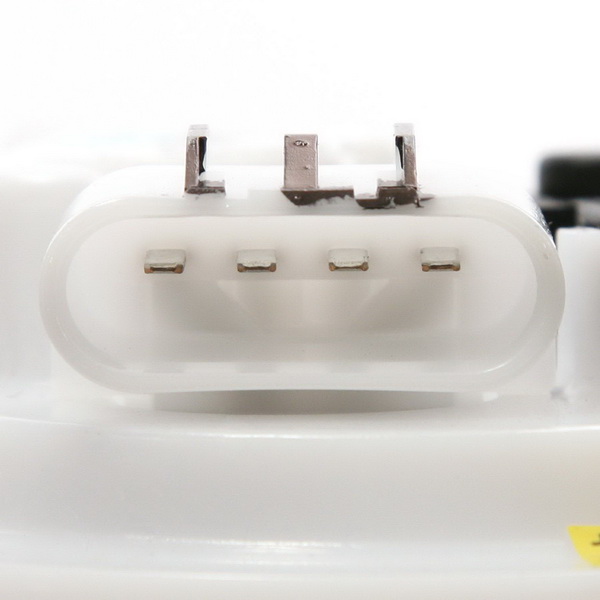

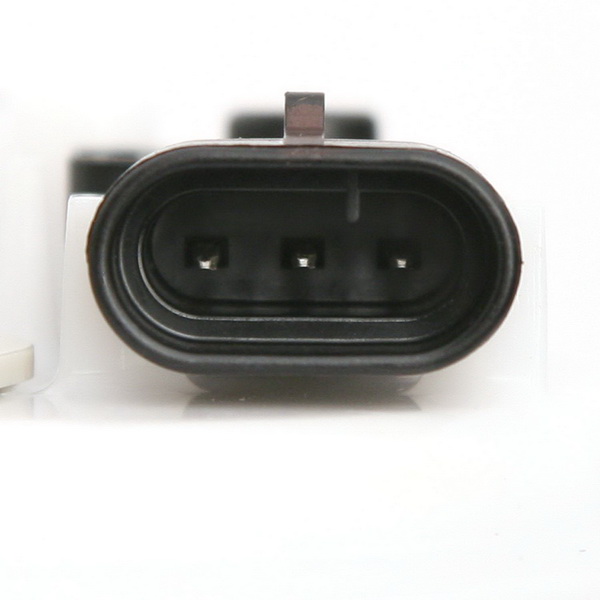

Harness/Jumper: 1 X 4 Splice Harnessthis is a test
Installed Height: 351.0 mmthis is a test
Mount Type: In-Tankthis is a test
OE Type/Exact Fit: OEthis is a test
Package Contents: Seal, Float Arm Asm., Fl. Arm Instr. Sht., Product Bulletin, Harnessthis is a test
Return Line Size: 7.9mmthis is a test
Return Line Style: Male QCthis is a test
Shut Off Pressure: 450 - 900 kPathis is a test
Strainer Location: Internal & Externalthis is a test
Supply Line Size: 9.5mmthis is a test
Supply Line Style: Male QCthis is a test
System Pressure: 425 kPathis is a test

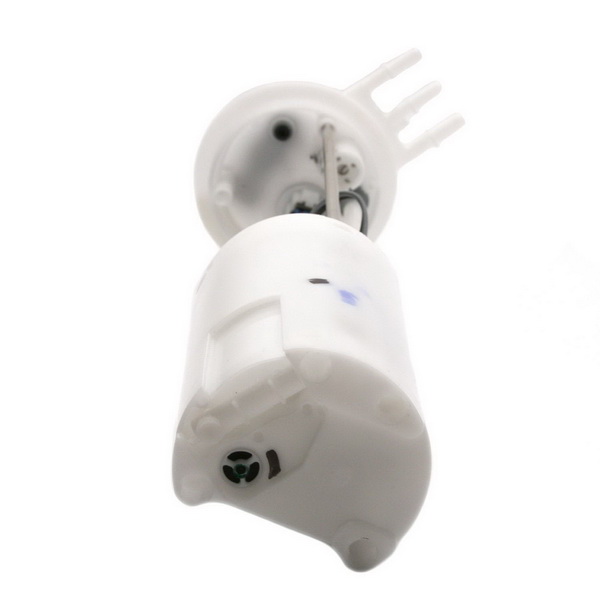

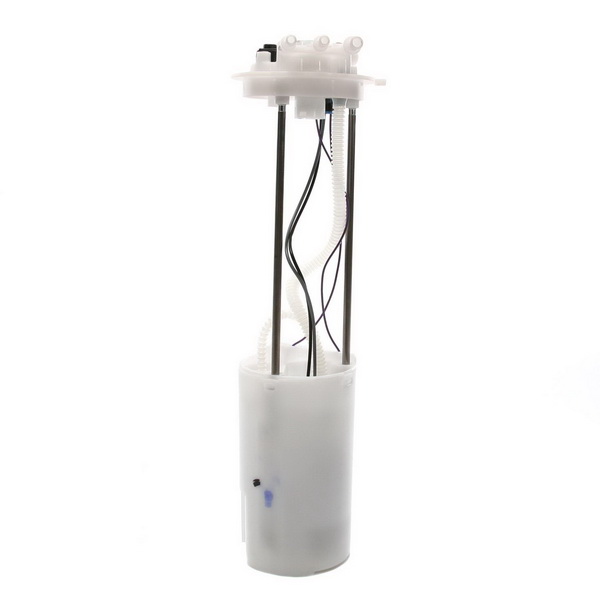

Type/Series: Fuel Delivery Modulethis is a test
Vapor Press Sensor: Yesthis is a test
Vapor Vent Line: Yesthis is a test
Voltage: 12 vDCthis is a test
Warranty: 12 mos/12,000 milesthis is a test
Description Internal springs increased durability and enhanced stability prevents tube chafing. Lower amperage draws less load on vehicle's electrical system. Fuel level goldfilled sensors provide improved resistance to sulfur corrosion and heat resistance. Empty float height and float retention is to exact OE specifications guaranteeing correct gas gauge reading
