Note:
Fill Line Size: N
Note:
Fill Line Style: N
Note:
Fill Vapor Valve: No
Note:
Flow Rate: 21.6 g/s
Note:
Fuel Pressure Reg: No
Note:
Fuel Type: Gasoline
Note:
Gasket Included: 25028682
Note:
Harness/Jumper: 1 X 4 Splice Harness
Note:
Installed Height: 246.5 mm
Note:
Mount Type: In-Tank
Note:
OE Type/Exact Fit: OE
Note:
Package Contents: Seal, Float Arm Asm., Fl. Arm Instr. Sht., Product Bulletin, Harness
Note:
Return Line Size: 7.9mm
Note:
Return Line Style: Male QC
Note:
Shut Off Pressure: 450 - 900 kPa
Note:
Strainer Location: Internal & External
Note:
Supply Line Size: 9.5mm
Note:
Supply Line Style: Male QC
Note:
System Pressure: 350 kPa
Note:

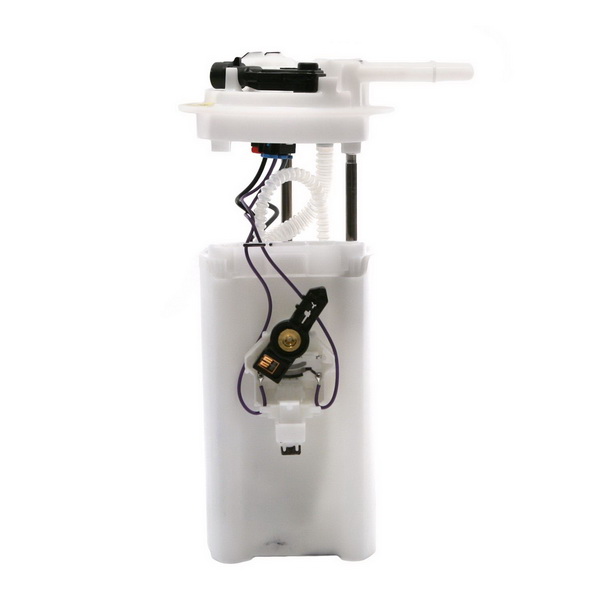

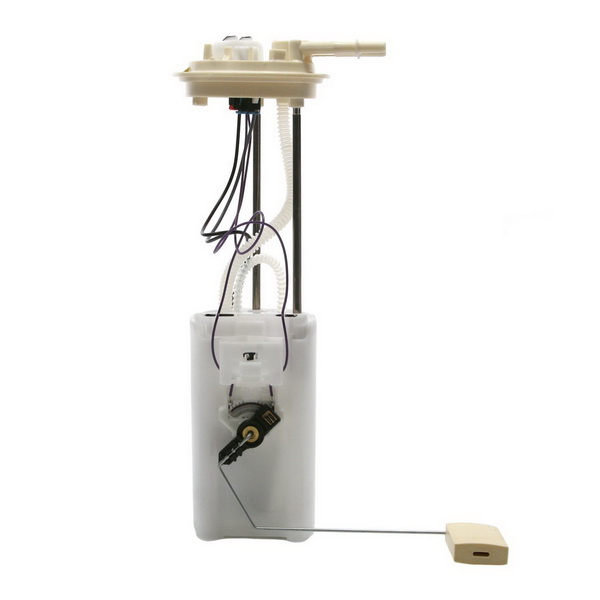

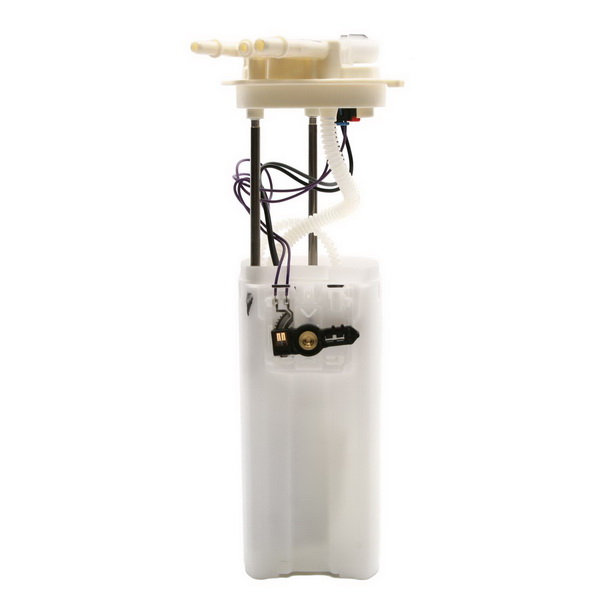

Type/Series: Fuel Delivery Module
Note:
Vapor Press Sensor: No
Note:
Vapor Vent Line: Yes
Note:
Voltage: 13.5 vDC
Note:
Warranty: 12 mos/12,000 miles
